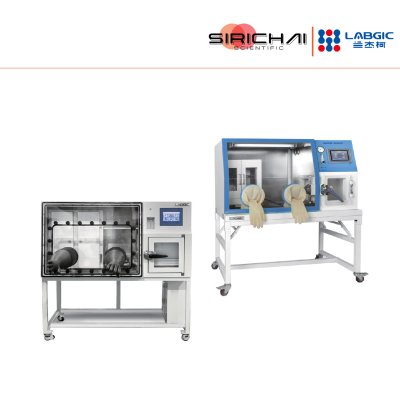

Anaerobic Incubator

Features AI-TS-5

• Use scientific means to achieve the anaerobic environment of high precision, good constability, constant temperature, easy for the operator to operate in the anaerobic environment and anaerobic bacteria culture
• The anaerobic incubator is controlled by microcomputer with large screen and true color touch screen, which is newly developed by our company control the temperature and gas of the incubator directly, safe and reliable. It has the characteristics of simple, intuitive and convenient
  operation
• The system uses PLC as the core controller, supplemented by high precision temperature sensor, oxygen sensor, temperature control mold block, analog module, high control precision, good stability, high safety; Humanized man-machine interface, convenient operators to process
  data real-time monitoring
• Oxygen sensor can observe the oxygen concentration status in the operating room at any time (oxygen concentration can be switched to % or PPM Function)
• There is a deaerator in the operating room
• With USB port, the memory can store data for 6 months
• The box is equipped with ultraviolet sterilization lamp, gas filtered into the box, can effectively avoid bacterial pollution
• Gas path device, the use of light touch switch control solenoid valve, can be arbitrary accurate adjustment of flow, can input a variety of required gas
• The incubator is designed with double door widening, which changes the phenomenon that when the single door is opened, it will touch the front window of the operation room. The widening can place more petri dishes
• Culture room and operation room are made of stainless steel plate, smooth and elegant, anticorrosive and durable
• The front window of the operation room is made of thickened transparent impact-resistant special glass plate. The operation and use of special gloves are reliable, comfortable, flexible and easy to use
• Fitted with leakage protector

Features AI-TS-S10

• The 7 "large screen real color touch screen microcomputer control type, can accurately and intuitively control the incubator temperature and other parameters. This system uses PLC as the core controller, supplemented by high precision temperature sensor, oxygen sensor, temperature control module, analog module, high control precision, good stability, high safety; Humanized man-machine interface, convenient operators to process data real-time monitoring
• Imported oxygen sensor is adopted, and the oxygen content of the operating room is directly displayed on the touch screen, which is convenient to observe whether the internal anaerobic state is reached
• Can do anaerobic culture, can do microculture (oxygen concentration: 0-10%)
• With USB port, the memory can store data for 6 months
• Anaerobic in the sampling room and anaerobic in the operating room are one-button automatic gas replacement
• Oxygen content can be set
• The see-through window cover can be removed as a whole to facilitate the placement of larger instruments or thorough cleaning
• The operating room is equipped with ultraviolet bactericidal lamps, which can effectively avoid bacterial contamination
• Standard lighting and power sockets
• A deoxygenated catalytic unit is installed in the operating room, and a high efficiency palladium catalyst is used to avoid frequent activation
• Gas displacement in the operating room adopts fully automatic control technology, with positive and negative pressure protection
• The sampling (aisle) room has the function of automatic vacuuming and pressure preservation
• Sample transfer: In and out of the ship, the first gas exchange is carried out before entering the incubator. 40 90mm plates can be transferred at a time, which is not only the access channel for operation, but also can be used to transfer plates
• Unique oil bottle type pressure relief brake design, protect the internal positive pressure, prevent air leakage, prevent the positive pressure to break the glove
• Fitted with leakage protector
• Oil-free vacuum pump

Features AI-LCD-5

• Use scientific means to achieve the anaerobic environment of high precision, good constability,constant temperature, easy for the operator to operate in the anaerobic environment and anaerobic bacteria culture
• . Temperature control using LCD large screen display, high precision microcomputer control (with timing) can accurately and intuitively reflect the actual temperature in the box, coupled with effective temperature limit protection, safe and reliable
• The box is equipped with ultraviolet sterilization lamp, gas filtered into the box, can effectively avoid bacterial pollution
• Gas path device, the use of light touch switch control solenoid valve, can be arbitrary accurate adjustment of flow, can input a variety of required gas
• The incubator is designed with double door widening, which changes the phenomenon that when the single door is opened, it will touch the front window of the operation room. The widening can place more petri dishes
• Culture room and operation room are made of stainless steel plate, smooth and elegant, anticorrosive and durable
• The front window of the operation room is made of thickened transparent impact-resistant special glass plate. The operation and use of special gloves are reliable, comfortable, flexible and easy to use
• There is a deaerator in the operating room
• Fitted with leakage protector

Features AW-TS-5

• Can do anaerobic culture, can do micro-oxygen culture (oxygen concentration: 0-10%)
• Color touch screen, multifunctional PLC intelligent control, more gas saving
• Anaerobic in the sampling room and anaerobic in the operating room are one-button automatic gas replacement
• Oxygen content can be set
• Sample transfer: In and out of the ship, the first gas exchange is carried out before entering the incubator. 40 90mm plates can be transferred at a time, which is not only the access channel for operation, but also can be used to transfer plates
• Vacuum pumping and nitrogen filling are controlled by panel switch. External vacuum pump is standard
• High efficiency palladium catalyst, no need for frequent activation, oxygen concentration less than 0.1%
• Detoxification system, using ultraviolet sterilization lamp and high temperature to detoxify
• Gas path replacement adopts automatic control technology with positive pressure and negative pressure protection
• It can control CO2, humidity and temperature
• Unique oil bottle type pressure relief brake design protects internal positive pressure and prevents air leakage
• A number of low pressure, over temperature safety protection devices
• The front cover can be removed as a whole to facilitate placing larger instruments or thorough cleaning, with a standard power socket
• The touch screen directly displays the oxygen content of the operating room, which is convenient to observe whether the internal anaerobic state is reached
• Comfortable and reliable gloves, easy to use (optional bare hand operating system, comfortable operation, will not cause skin allergy)
• Oil-free vacuum pump
