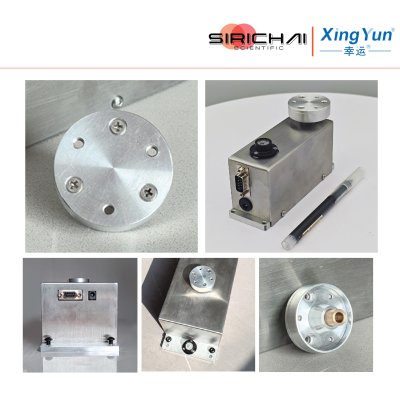

WM Series High Precision Weighing Modules 10,000 divisions

Product description

Model	WM2204	WM2204i
Capacity	220g
Readability	0.1mg
Preloading	1/3 max. weighing capacity
Repeatability	±0.1mg
Linearity	±0.2mg
Response time	3s
Calibration mode	External calibration	Full-automatic internal calibration
Operating temperature range	+10......+30
Storage temperature range	+5......+40
Dimension of weighing module	260(L)×100(W)×101(H) mm
Bottom weighing function	Bottom hook weighing (optional)
Power adapter	Input: AC 100-240V 50/60HZ Output: 9V 3A
Data interface	RS232
Communication protocol	Modbus bi-directional communication / SICS communication protocol

Electromagnetic force sensor Lower hook weighing(optional)

Automatic internal calibration (optional) Stainless steel case

Bi-directional communication with Modbus protocol RS232 serial port for data output

SICS communication protocol Compact size and easy to install

Overload protection for load cell Quick weighing

Scale guard Leveling indicator

XingYun WM series weighing modules provide solutions for automated weighing applications in multiple industries.

Main applications: Dispensers / Pharmaceutical Packaging

Widely used in a variety of production occasions, easy to install, can be easily connected to computers and industrial control equipment.
